Intelligent Cantilever Fully Automatic Pallet Wrapping Machine For Heavy-Duty Logistics Industrial Packaging 30–35 Pallets/Hour
Product Overview
The Intelligent Cantilever Fully Automatic Pallet Wrapping Machine is designed to deliver reliable, high-speed pallet packaging for manufacturers seeking greater efficiency and lower operating costs. Featuring a stationary pallet design, the machine wraps products by rotating a heavy-duty cantilever arm around the load, making it ideal for unstable, heavy, or oversized pallets.
Equipped with a Siemen PLC, intelligent touchscreen controls, automatic film clamping and cutting, and a 250% powered pre-stretch film carriage, the machine ensures consistent wrapping quality while reducing stretch film consumption. Its maintenance-free slewing bearing transmission offers quiet operation, excellent durability, and minimal servicing requirements. Integrated with premium electrical components from SICK, Schneider, OMRON, AirTAC, and SEW, this automatic pallet wrapper is widely used in food processing, logistics, building materials, chemicals, paper, and manufacturing industries where continuous, unattended packaging is essential.
Cause
As production lines become faster and more automated, traditional pallet wrapping methods struggle to keep pace. Manual or semi-automatic wrapping often creates delays between palletizing and shipping, requiring operators to attach and remove stretch film for every load.
In addition, inconsistent wrapping tension may result in loose loads, damaged products, and unstable pallets during transportation. Excessive stretch film consumption also increases packaging costs over time.
For manufacturers handling heavy pallets, fragile products, or irregular-shaped loads, rotating the pallet itself can increase the risk of shifting or collapse. Businesses therefore need an intelligent wrapping solution that improves packaging consistency while integrating seamlessly with automated production lines.
Solution
The Intelligent Cantilever Fully Automatic Pallet Wrapping Machine provides a fully automated packaging process from pallet detection to film cutting.
Unlike conventional turntable machines, the pallet remains stationary throughout the wrapping cycle while the cantilever arm rotates smoothly around it. This design minimizes load movement and improves packaging stability for tall, heavy, or delicate products.
The powered pre-stretch system extends the film up to 250%, allowing each roll of film to cover more pallets while maintaining strong holding force. Automatic film clamping and cutting eliminate manual handling, increasing production efficiency and enabling continuous unmanned operation.

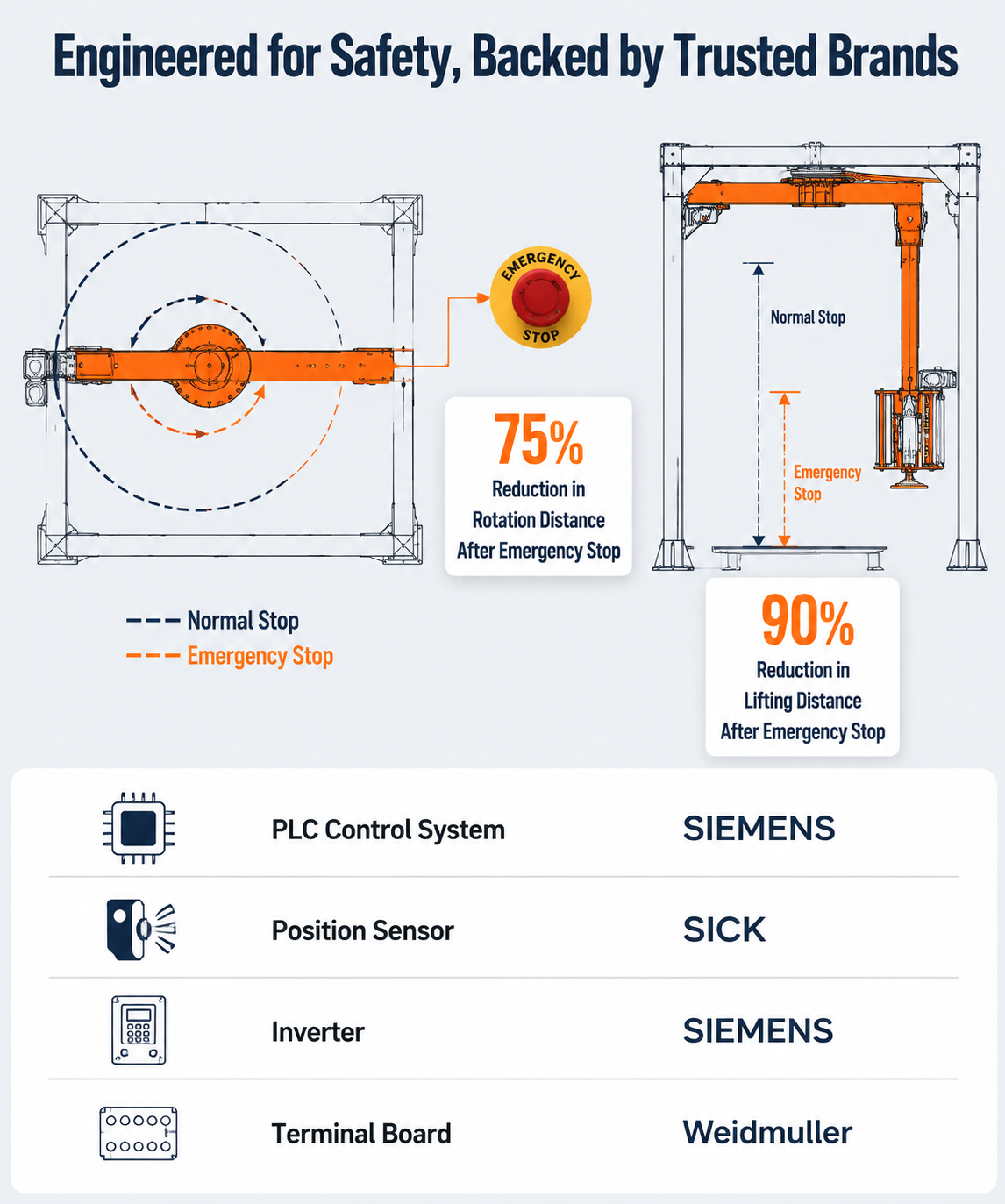

Intelligent sensors, programmable wrapping modes, LED alarm notifications, and comprehensive safety protection further ensure stable operation in demanding industrial environments.
Specifications
| Model |
Intelligent Cantilever Fully Automatic Pallet Wrapping Machine |
| Wrapping Capacity |
30–35 Loads/Hour |
| Maximum Pallet Size |
1200 × 1200 mm |
| Maximum Wrapping Height |
2000 mm |
| Rotary Speed |
0–30 RPM (Adjustable) |
| Ring Diameter |
2000 mm |
| Ring Motor Power |
3.3 kW |
| Stretch Film Width |
500 mm |
| Pre-Stretch Ratio |
250% |
| Film Roll Diameter |
Ø250 mm |
| Automatic Film Clamp & Cut |
Standard |
| Constant Film Tension |
Standard |
Application
The machine is suitable for fully automated production environments requiring reliable pallet stabilization before storage or transportation.
Recommended industries include:
Food and Beverage
Chemical Manufacturing
Building Materials
Paper and Packaging
Home Appliances
Plastic Products
Furniture Manufacturing
Warehouse Distribution Centers
Third-Party Logistics (3PL)
Export Packaging Facilities
Automated Production Lines
It performs exceptionally well when wrapping unstable pallet loads, stacked cartons, bagged products, bottled goods, drums, and oversized industrial materials.
How It Works
Automatic Pallet Entry
Finished pallets are transported into the wrapping station through an automatic conveyor. The intelligent sensor system identifies pallet dimensions and verifies the wrapping conditions.
Intelligent Stretch Wrapping
The cantilever arm begins rotating around the stationary pallet while the powered film carriage stretches the film by up to 250%, providing excellent load containment with minimal material usage.
Full-Height Wrapping
The film carriage automatically travels upward and downward according to the selected wrapping program. Multiple wrapping patterns can be customized for different pallet sizes and transportation requirements.
Automatic Film Finishing
Once wrapping is completed, the machine clamps and cuts the stretch film automatically. The finished pallet exits the wrapping station and moves directly to labeling, storage, or shipment.
How To Choose
Selecting the correct pallet wrapping equipment depends on your packaging objectives.
If your production operates continuously with conveyor systems, a fully automatic cantilever wrapper is the ideal solution for maximizing efficiency.
For heavy or unstable pallet loads, the stationary wrapping method offers greater stability than traditional turntable wrapping equipment.
Businesses looking to reduce packaging material costs should prioritize machines with powered pre-stretch technology, as higher film utilization significantly lowers long-term operating expenses.
If your factory plans to expand automation in the future, choose a machine that supports optional accessories such as top sheet dispensers, top pressure devices, corner protectors, and integration with robotic palletizers or AGV systems.
Finally, selecting internationally recognized electrical components ensures easier maintenance, greater reliability, and worldwide spare parts availability.
Why Choose This Machine?
Stationary pallet design improves wrapping stability
Maintenance-free slewing bearing transmission
Automatic film clamping, cutting, and sealing
250% powered pre-stretch film carriage
High-speed capacity of up to 35 pallets per hour
Siemen intelligent control system
LED fault diagnosis and remote operation
Industrial-grade electrical components from leading global brands
Easy integration with automatic packaging lines
Low maintenance and long equipment lifespan
FAQ
1. What is the advantage of a cantilever pallet wrapper?
Because the pallet remains stationary during wrapping, it is safer for unstable, tall, heavy, or fragile loads and delivers more consistent wrapping quality.
2. Can the wrapping parameters be customized?
Yes. Operators can freely adjust wrapping layers, overlap percentage, rotation speed, carriage speed, film tension, and other packaging parameters through the touchscreen interface.
3. Does the machine support automatic production lines?
Yes. It can be connected with conveyors, palletizers, barcode systems, AGVs, warehouse management systems, and other end-of-line automation equipment.
4. Is the machine suitable for export packaging?
Absolutely. The machine produces tightly wrapped pallets that improve load stability during long-distance transportation, container shipping, and overseas delivery.
5. What services are included after purchase?
We provide machine installation support, commissioning, operator training, remote technical assistance, spare parts supply, preventive maintenance recommendations, and customized automation solutions for global customers.
